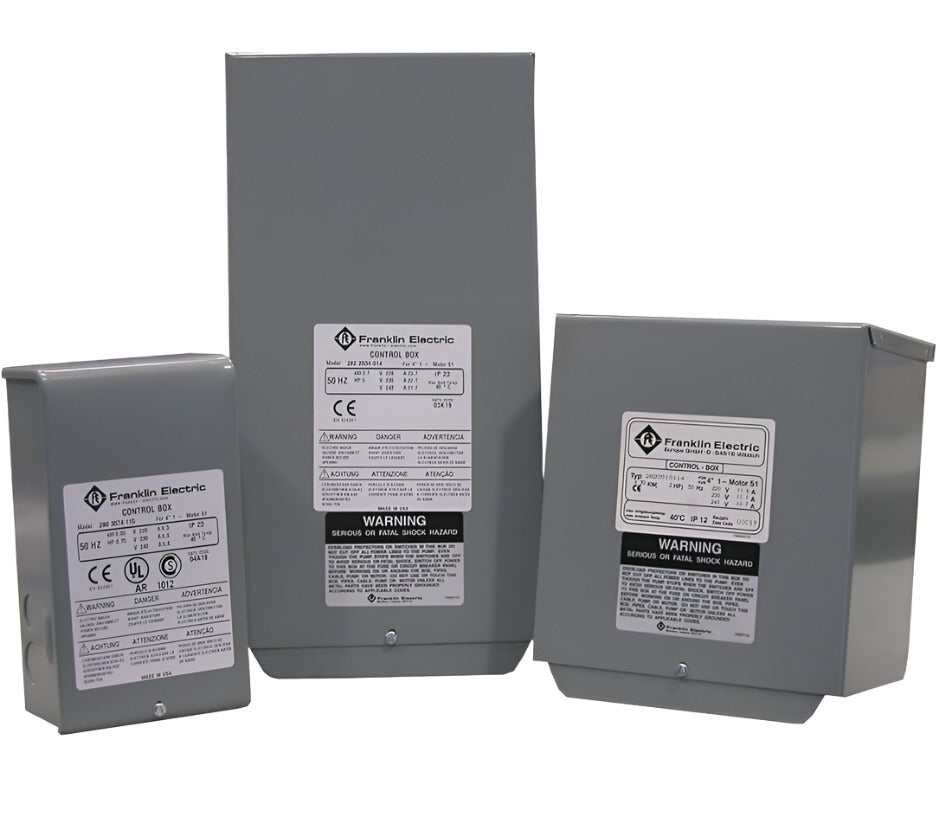

Franklin Control Box 0.37kW 220V

The Franklin Control Box 0.37kW 220V is designed for use with Franklin three-wire, single phase submersible pump motors. It provides the starting and running components required to operate a 0.37kW (0.5 HP) submersible borehole pump motor from a standard 220V single phase power supply.

Franklin control boxes incorporate starting capacitors and overload protection to ensure reliable motor starting and protection against electrical faults. The Quick Disconnect (QD) design simplifies troubleshooting by automatically disconnecting the control components from the system when the cover is removed.

• Brand: Franklin Electric
• Motor power rating: 0.37kW (0.5 HP)
• Voltage: 220V single phase
• Wire configuration: 3-wire
• Functions: starting capacitor, overload protection
• Compatible with Franklin single phase submersible pump motors

Install in a dry, ventilated location protected from the weather. Ensure the motor rating matches the control box rating before connecting. Delivered nationwide by Move.store.
