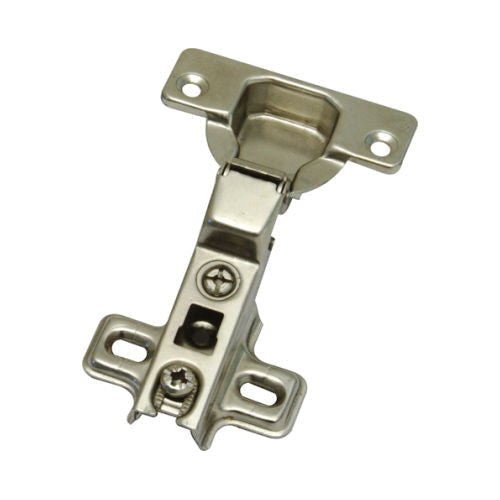

Mackie Hinge Conceal C/plate 110mm

Mackie Hinge Concealed Chrome-Plated 110mm 10-Degree is a European-style concealed cup hinge for kitchen cabinet doors and furniture that require a slight 10-degree angled opening to clear an adjacent obstruction such as a corner post, appliance, or return panel. The 110-degree opening angle combined with the 10-degree crank allows the door to open fully without fouling adjacent cabinetry or walls.

Mackie is a South African hardware brand providing builders, DIY homeowners, and contractors with a comprehensive range of door and cabinet hardware, security fittings, and structural brackets.

• Finish: Chrome-plated (C/Plate)
• Cup diameter: 35mm (standard European cabinet hinge cup size)
• Opening angle: 110 degrees
• Crank: 10 degrees, for doors adjacent to corners or obstructions
• Mounting: Press-in or screw-in cup into door, mounting plate screws to cabinet frame
• Application: Kitchen cabinets, wardrobes, furniture, 10-degree angled door positions
• Adjustability: 3-way adjustable mounting plate for door alignment

Suitable for standard 18mm to 19mm cabinet door panels. Requires 35mm Forstner bit for cup drilling. Delivered nationwide by Move.store.
