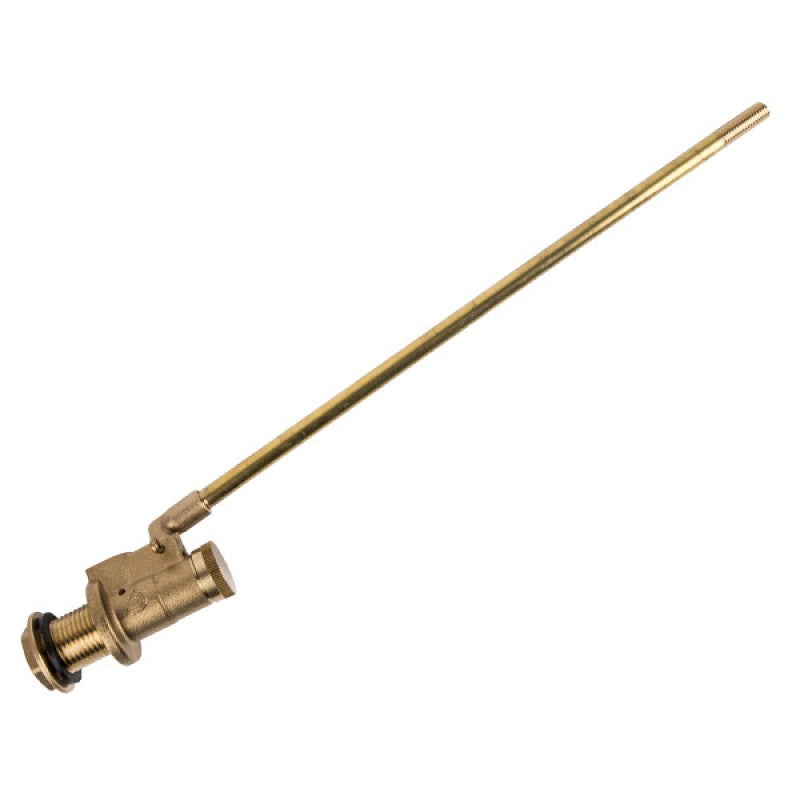

Brass Float Valve Hp 20mm

Float Valve HP 20mm Brass is a high-pressure brass ball float valve for automatic water level control in tanks and reservoirs. The valve opens and closes based on a float arm attached to a lever mechanism.

• Body material: brass
• Valve type: high-pressure ball float valve
• Connection size: 20mm
• Recommended operating pressure: 200 kPa to 1600 kPa (2 to 16 bar)
• Nominal pressure: 1.6 MPa
• Function: automatically shuts off water flow when the tank reaches the set level
• Application: farm and industrial water tanks, livestock troughs, storage cisterns, header tanks
• Replacement arm: available separately

Suitable for high-pressure water systems in farm, industrial, and municipal water storage installations.
